Video Inspection System for Deepwater Wells

The VPI-710 deepwater well exploration video inspection system is a state-of-the-art device designed to accurately locate leaks, ruptures, and obstructions in environments such as

• Wells
• Silos
• Tanks
• Vertical perforations

Equipped with advanced technical features, this video inspection system offers accurate checks down to the smallest detail, ensuring maximum convenience for operators.

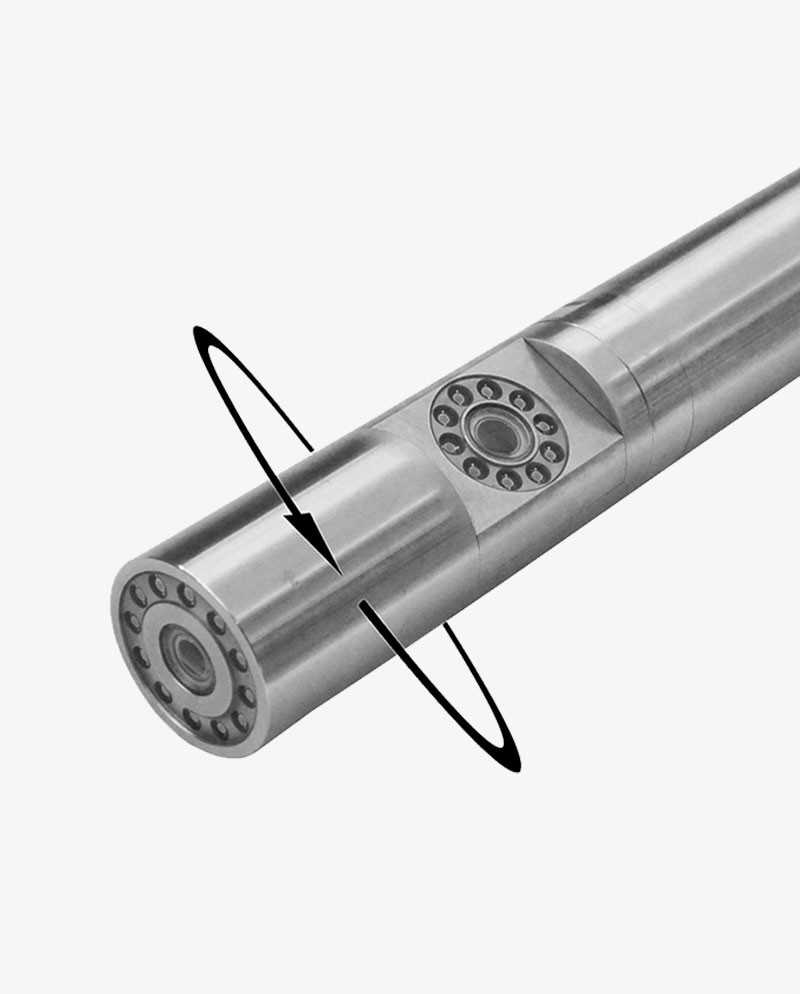

Thanks to the double camera, one positioned on the side and the other at the tip, the video inspection system allows the capture of images and video and audio recording operating up to a pressure of 50 bar.

Video inspection cameras have a 120° viewing angle and a 360° panoramic view thanks to the infinite rotation provided by the second camera. During video inspection, illumination is provided by 6 high-brightness LEDs per camera, ensuring a clear view in environments without light.

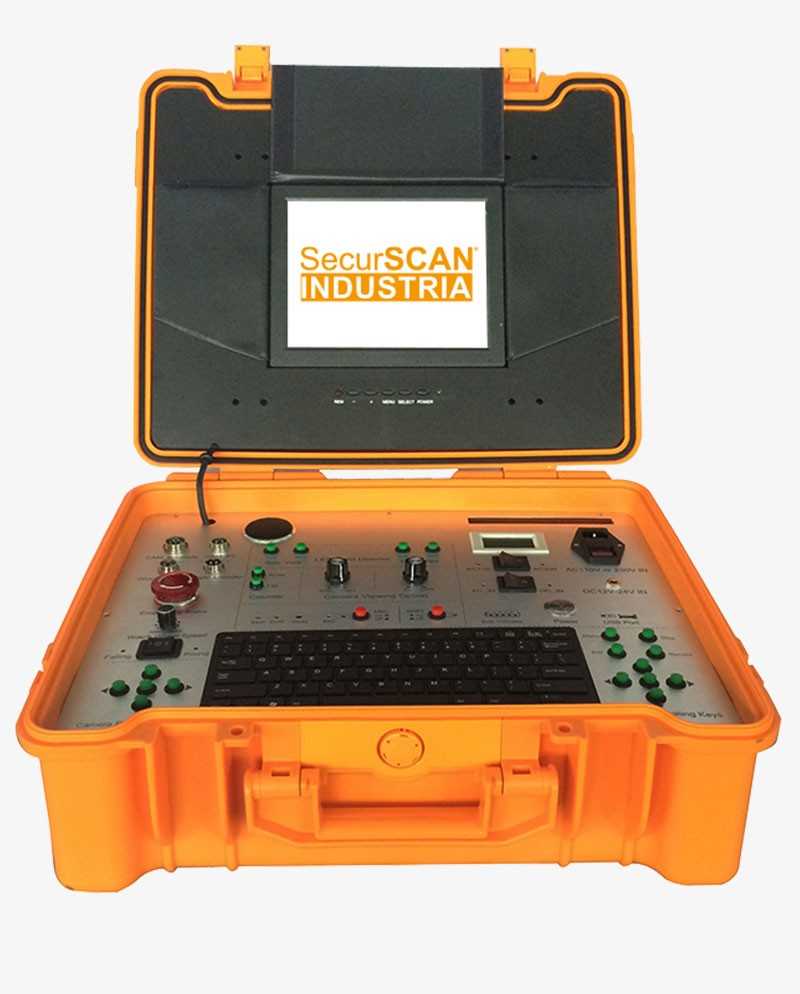

The system is accompanied by a control box that houses a 10″ color monitor, providing a clear display of the captured images. The system language is fully configurable, giving you a choice of 9 languages for greater operational flexibility. The control box not only simplifies interaction with the system but also represents a platform for managing and sharing the collected data.

The VPI-710 system can share photos, videos and data over a wireless WIFI connection, making it easy to transfer information to operators using Android/OS systems or MID terminals. This real-time data transmission capability makes the system extremely versatile for inspection operations and facilitates communication between the inspection team.

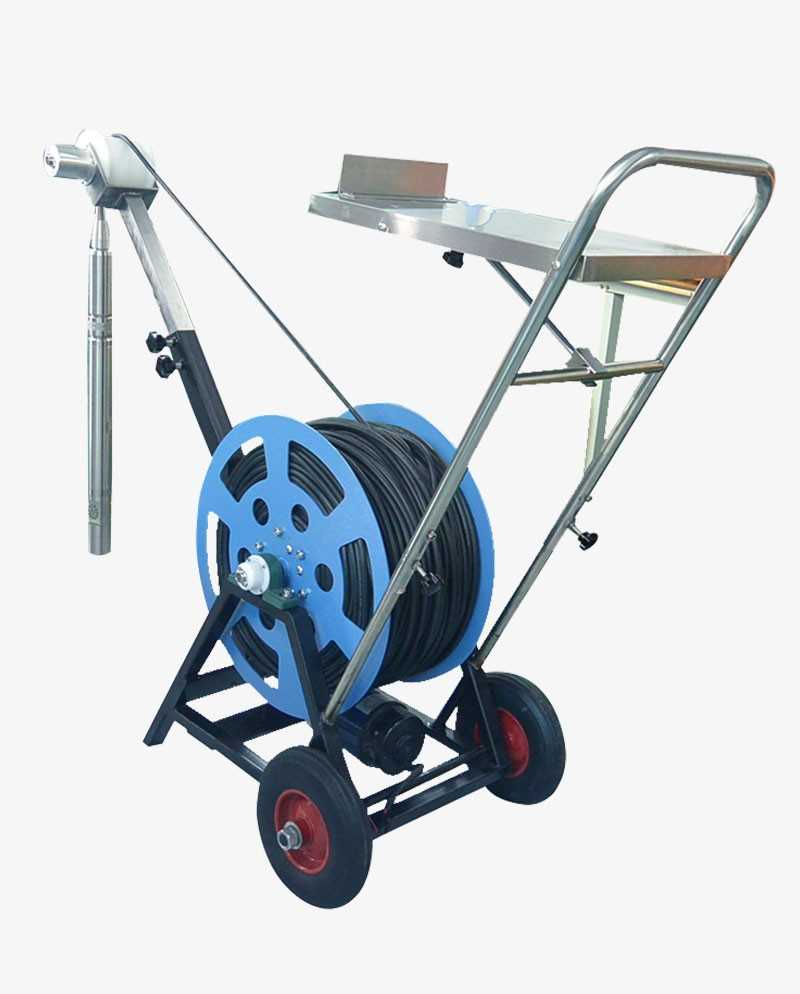

A revolutionary feature of the VPI-710 is the integration of the robust electric winch with cable reel. The adjustable speed, compactness and robustness of this device greatly simplify inspection operations even in the deepest wells, providing operators with greater efficiency and ease of management.

In summary, the VPI-710 video inspection system represents a breakthrough in deepwater well exploration, offering a complete and technologically advanced solution for the challenges of inspecting very deep wells.
